Toll-like receptor 9

UniProt data

UniProt name: TLR9_HUMAN (Q9NR96)

Gene name: TLR9; ORFNames=UNQ5798/PRO19605

Organism: Homo sapiens (Human).

Function: Key component of innate and adaptive immunity. TLRs (Toll-like receptors) control host immune response against pathogens through recognition of molecular patterns specific to microorganisms. TLR9 is a nucleotide-sensing TLR which is activated by unmethylated cytidine-phosphate-guanosine (CpG) dinucleotides. Acts via MYD88 and TRAF6, leading to NF-kappa-B activation, cytokine secretion and the inflammatory response. Controls lymphocyte response to Helicobacter infection. {ECO:0000269|PubMed:11564765, ECO:0000269|PubMed:17932028}.

Subcellular location: Endoplasmic reticulum membrane {ECO:0000250}; Single-pass type I membrane protein {ECO:0000250}. Endosome {ECO:0000250}. Lysosome {ECO:0000250}. Cytoplasmic vesicle, phagosome {ECO:0000250}. Note=Relocalizes from endoplasmic reticulum to endosome and lysosome upon stimulation with agonist. {ECO:0000250}.

Transmembrane domains:

  1. 819-839, 21 AA, Helical. {ECO:0000255}.

Sequence: 1032 AA

10 20 30 40 50 60 MGFCRSALHP LSLLVQAIML AMTLALGTLP AFLPCELQPH GLVNCNWLFL KSVPHFSMAA 70 80 90 100 110 120 PRGNVTSLSL SSNRIHHLHD SDFAHLPSLR HLNLKWNCPP VGLSPMHFPC HMTIEPSTFL 130 140 150 160 170 180 AVPTLEELNL SYNNIMTVPA LPKSLISLSL SHTNILMLDS ASLAGLHALR FLFMDGNCYY 190 200 210 220 230 240 KNPCRQALEV APGALLGLGN LTHLSLKYNN LTVVPRNLPS SLEYLLLSYN RIVKLAPEDL 250 260 270 280 290 300 ANLTALRVLD VGGNCRRCDH APNPCMECPR HFPQLHPDTF SHLSRLEGLV LKDSSLSWLN 310 320 330 340 350 360 ASWFRGLGNL RVLDLSENFL YKCITKTKAF QGLTQLRKLN LSFNYQKRVS FAHLSLAPSF 370 380 390 400 410 420 GSLVALKELD MHGIFFRSLD ETTLRPLARL PMLQTLRLQM NFINQAQLGI FRAFPGLRYV 430 440 450 460 470 480 DLSDNRISGA SELTATMGEA DGGEKVWLQP GDLAPAPVDT PSSEDFRPNC STLNFTLDLS 490 500 510 520 530 540 RNNLVTVQPE MFAQLSHLQC LRLSHNCISQ AVNGSQFLPL TGLQVLDLSH NKLDLYHEHS 550 560 570 580 590 600 FTELPRLEAL DLSYNSQPFG MQGVGHNFSF VAHLRTLRHL SLAHNNIHSQ VSQQLCSTSL 610 620 630 640 650 660 RALDFSGNAL GHMWAEGDLY LHFFQGLSGL IWLDLSQNRL HTLLPQTLRN LPKSLQVLRL 670 680 690 700 710 720 RDNYLAFFKW WSLHFLPKLE VLDLAGNQLK ALTNGSLPAG TRLRRLDVSC NSISFVAPGF 730 740 750 760 770 780 FSKAKELREL NLSANALKTV DHSWFGPLAS ALQILDVSAN PLHCACGAAF MDFLLEVQAA 790 800 810 820 830 840 VPGLPSRVKC GSPGQLQGLS IFAQDLRLCL DEALSWDCFA LSLLAVALGL GVPMLHHLCG 850 860 870 880 890 900 WDLWYCFHLC LAWLPWRGRQ SGRDEDALPY DAFVVFDKTQ SAVADWVYNE LRGQLEECRG 910 920 930 940 950 960 RWALRLCLEE RDWLPGKTLF ENLWASVYGS RKTLFVLAHT DRVSGLLRAS FLLAQQRLLE 970 980 990 1000 1010 1020 DRKDVVVLVI LSPDGRRSRY VRLRQRLCRQ SVLLWPHQPS GQRSFWAQLG MALTRDNHHF 1030 YNRNFCQGPT AE

CATM prediction

The sequence of TLR9_HUMAN returned 1 potential models

The positions at the dimer's interface are highlighted in yellow. The position at the crossing point is highlighted in orange.

# Sequence and interface d θ Z' ω' Score
      820       830       840
    |    +    |    +    |  		 (Å) (°) (Å) (°)
Model 1 WDCFALSLLAVALGLGVAMLHHLCGWD 6.9 -45.8° 2.7 46.9 -25.2
Prolines* WDCFALSLLAVALGLGVPMLHHLCGWD

* Note: this sequence contains Pro residues. CATM substituted them with Ala during the modeling. The positions are marked.

Click on the model number to visualize its details below.

MODEL 1 DETAILS

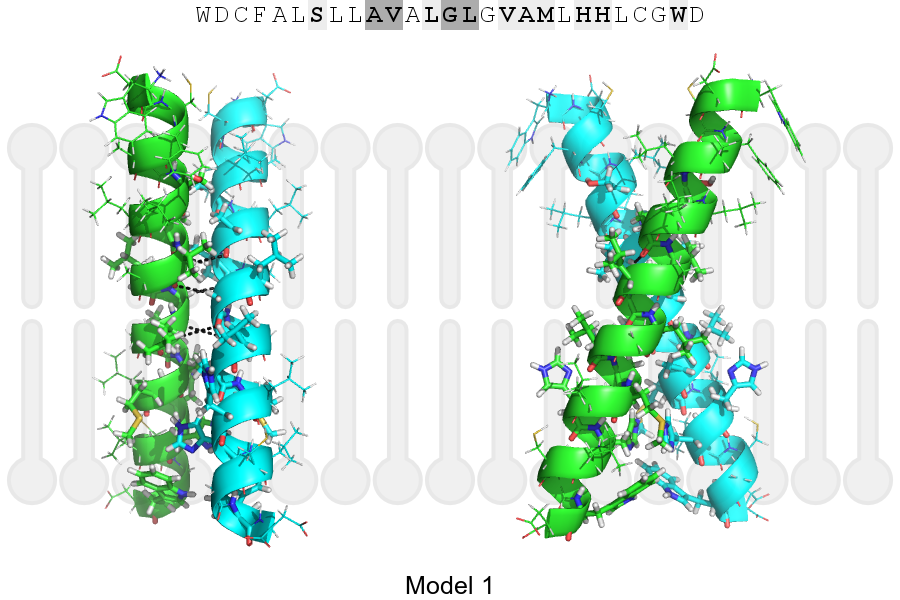

Precited structure:


Click on the image to enlarge

Download model 1 structure: PDB, PyMOL session

List of hydrogen bonds:

Donor Acceptor Distance
B, 826, VAL, HA A, 825, ALA, O 2.95Å
B, 829, GLY, HA1 A, 826, VAL, O 2.89Å
B, 830, LEU, HA A, 829, GLY, O 3.40Å
A, 826, VAL, HA B, 825, ALA, O 2.95Å
A, 829, GLY, HA1 B, 826, VAL, O 2.89Å
A, 830, LEU, HA B, 829, GLY, O 3.40Å
