Cysteine-rich and transmembrane domain-containing protein 1

UniProt data

UniProt name: CYTM1_HUMAN (Q9H1C7)

Gene name: CYSTM1; Synonyms=C5orf32; ORFNames=ORF1-FL49

Organism: Homo sapiens (Human).

Function:

Subcellular location: Membrane {ECO:0000305}; Single-pass membrane protein {ECO:0000305}.

Transmembrane domains:

  1. 74-91, 18 AA, Helical. {ECO:0000255}.

Sequence: 97 AA

10 20 30 40 50 60 MNQENPPPYP GPGPTAPYPP YPPQPMGPGP MGGPYPPPQG YPYQGYPQYG WQGGPQEPPK 70 80 90 TTVYVVEDQR RDELGPSTCL TACWTALCCC CLWDMLT

CATM prediction

The sequence of CYTM1_HUMAN returned 1 potential models

The positions at the dimer's interface are highlighted in yellow. The position at the crossing point is highlighted in orange.

# Sequence and interface d θ Z' ω' Score
           80        90
    +    |    +    |    		 (Å) (°) (Å) (°)
Model 1 RDELGASTCLTACWTALCCCCLWD 7.0 -40.0° 2.7 34.0 -1.4
Prolines* RDELGPSTCLTACWTALCCCCLWD

* Note: this sequence contains Pro residues. CATM substituted them with Ala during the modeling. The positions are marked.

Click on the model number to visualize its details below.

MODEL 1 DETAILS

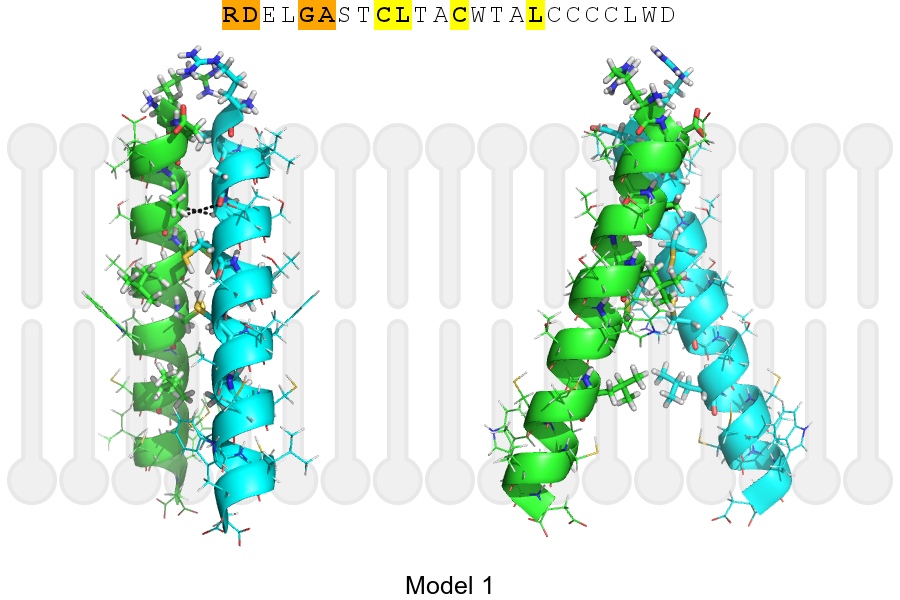

Precited structure:


Click on the image to enlarge

Download model 1 structure: PDB, PyMOL session

List of hydrogen bonds:

Donor Acceptor Distance
B, 76, ALA, HA A, 75, GLY, O 3.42Å
A, 76, ALA, HA B, 75, GLY, O 3.42Å
