UniProt data
UniProt name: FXYD6_HUMAN (Q9H0Q3)
Gene name: FXYD6; ORFNames=UNQ521/PRO1056
Organism: Homo sapiens (Human).
Function:
Subcellular location: Membrane {ECO:0000305}; Single-pass type I membrane protein {ECO:0000305}.
Transmembrane domains:
- 36-58, 23 AA, Helical. {ECO:0000255}.
Sequence: 95 AA
10 20 30 40 50 60
MELVLVFLCS LLAPMVLASA AEKEKEMDPF HYDYQTLRIG GLVFAVVLFS VGILLILSRR
70 80 90
CKCSFNQKPR APGDEEAQVE NLITANATEP QKAEN
CATM prediction
The sequence of FXYD6_HUMAN returned 2 potential models
The positions at the dimer's interface are highlighted in yellow. The position at the crossing point is highlighted in orange.
| # | Sequence and interface | d | θ | Z' | ω' | Score |
|---|---|---|---|---|---|---|
| 40 50 60 + | + | + | |
(Å) | (°) | (Å) | (°) | ||
| Model 1 | DYQTLRIGGLVFAVVLFSVGILLILSRRC | 7.1 | -43.1° | 0.0 | 33.9 | -5.2 |

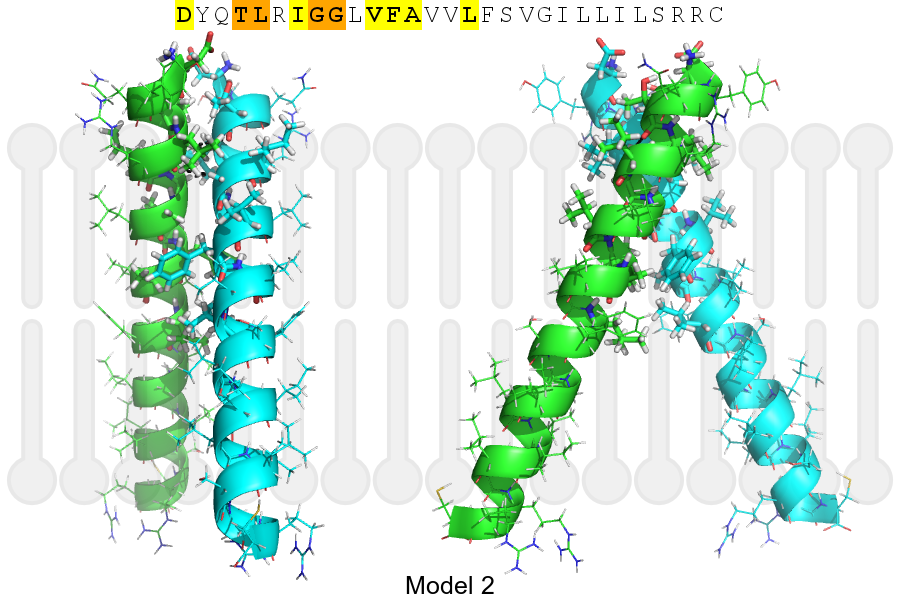

| Model 2 | DYQTLRIGGLVFAVVLFSVGILLILSRRC | 7.1 | -51.0° | 2.4 | 45.0 | -0.9 |
Click on the model number to visualize its details below.

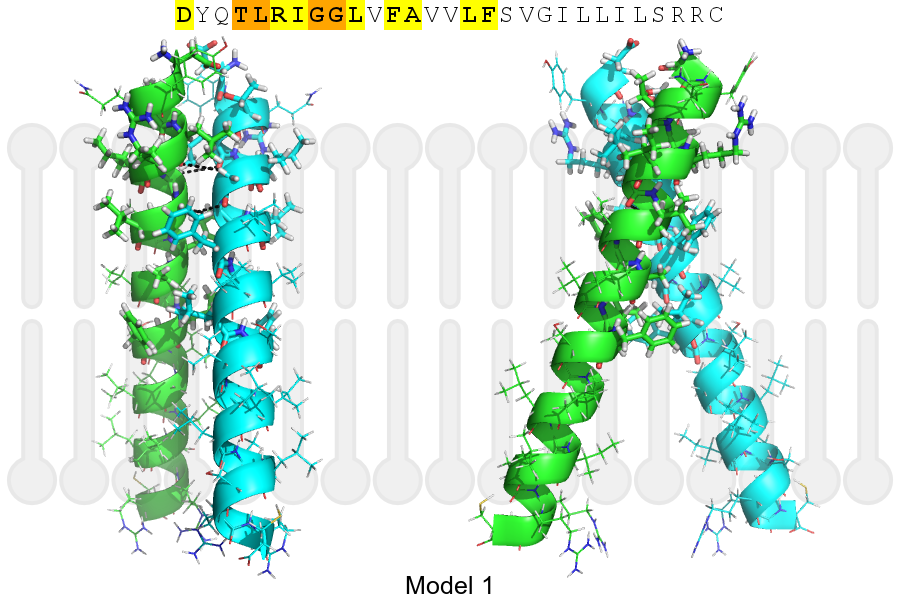

MODEL 1 DETAILS
Precited structure:
Click on the image to enlarge
Download model 1 structure: PDB, PyMOL session
List of hydrogen bonds:
| Donor | Acceptor | Distance |
|---|---|---|
| B, 40, GLY, HA1 | A, 37, LEU, O | 3.45Å |
| B, 41, GLY, HA2 | A, 40, GLY, O | 3.29Å |
| A, 40, GLY, HA1 | B, 37, LEU, O | 3.45Å |
| A, 41, GLY, HA2 | B, 40, GLY, O | 3.29Å |
