Cadherin-related family member 2 {ECO:0000305}

UniProt data

UniProt name: CDHR2_HUMAN (Q9BYE9)

Gene name: CDHR2 {ECO:0000312|HGNC:HGNC:18231}

Organism: Homo sapiens (Human).

Function: Intermicrovillar adhesion molecule that forms, via its extracellular domain, calcium-dependent heterophilic complexes with CDHR5 on adjacent microvilli. Thereby, controls the packing of microvilli at the apical membrane of epithelial cells. Through its cytoplasmic domain, interacts with microvillus cytoplasmic proteins to form the intermicrovillar adhesion complex/IMAC. This complex plays a central role in microvilli and epithelial brush border differentiation (PubMed:24725409). May also play a role in cell-cell adhesion and contact inhibition in epithelial cells (PubMed:12117771). {ECO:0000269|PubMed:12117771, ECO:0000269|PubMed:24725409}.

Subcellular location: Apical cell membrane {ECO:0000269|PubMed:12117771, ECO:0000269|PubMed:24725409}; Single-pass type I membrane protein {ECO:0000269|PubMed:12117771, ECO:0000269|PubMed:24725409}. Cell projection, microvillus membrane {ECO:0000269|PubMed:12117771, ECO:0000269|PubMed:24725409}; Single-pass type I membrane protein {ECO:0000269|PubMed:12117771, ECO:0000269|PubMed:24725409}. Cell junction {ECO:0000269|PubMed:12117771}.

Transmembrane domains:

  1. 1155-1175, 21 AA, Helical. {ECO:0000255}.

Sequence: 1310 AA

10 20 30 40 50 60 MAQLWLSCFL LPALVVSVAA NVAPKFLANM TSVILPEDLP VGAQAFWLVA EDQDNDPLTY 70 80 90 100 110 120 GMSGPNAYFF AVTPKTGEVK LASALDYETL YTFKVTISVS DPYIQVQREM LVIVEDRNDN 130 140 150 160 170 180 APVFQNTAFS TSINETLPVG SVVFSVLAVD KDMGSAGMVV YSIEKVIPST GDSEHLFRIL 190 200 210 220 230 240 ANGSIVLNGS LSYNNKSAFY QLELKACDLG GMYHNTFTIQ CSLPVFLSIS VVDQPDLDPQ 250 260 270 280 290 300 FVREFYSASV AEDAAKGTSV LTVEAVDGDK GINDPVIYSI SYSTRPGWFD IGADGVIRVN 310 320 330 340 350 360 GSLDREQLLE ADEEVQLQVT ATETHLNIYG QEAKVSIWVT VRVMDVNDHK PEFYNCSLPA 370 380 390 400 410 420 CTFTPEEAQV NFTGYVDEHA SPRIPIDDLT MVVYDPDKGS NGTFLLSLGG PDAEAFSVSP 430 440 450 460 470 480 ERAVGSASVQ VLVRVSALVD YERQTAMAVQ VVATDSVSQN FSVAMVTIHL RDINDHRPTF 490 500 510 520 530 540 PQSLYVLTVP EHSATGSVVT DSIHATDPDT GAWGQITYSL LPGNGADLFQ VDPVSGTVTV 550 560 570 580 590 600 RNGELLDRES QAVYYLTLQA TDGGNLSSST TLQIHLLDIN DNAPVVSGSY NIFVQEEEGN 610 620 630 640 650 660 VSVTIQAHDN DEPGTNNSRL LFNLLPGPYS HNFSLDPDTG LLRNLGPLDR EAIDPALEGR 670 680 690 700 710 720 IVLTVLVSDC GEPVLGTKVN VTITVEDIND NLPIFNQSSY NFTVKEEDPG VLVGVVKAWD 730 740 750 760 770 780 ADQTEANNRI SFSLSGSGAN YFMIRGLVLG AGWAEGYLRL PPDVSLDYET QPVFNLTVSA 790 800 810 820 830 840 ENPDPQGGET IVDVCVNVKD VNDNPPTLDV ASLRGIRVAE NGSQHGQVAV VVASDVDTSA 850 860 870 880 890 900 QLEIQLVNIL CTKAGVDVGS LCWGWFSVAA NGSVYINQSK AIDYEACDLV TLVVRACDLA 910 920 930 940 950 960 TDPGFQAYSN NGSLLITIED VNDNAPYFLP ENKTFVIIPE LVLPNREVAS VRARDDDSGN 970 980 990 1000 1010 1020 NGVILFSILR VDFISKDGAT IPFQGVFSIF TSSEADVFAG SIQPVTSLDS TLQGTYQVTV 1030 1040 1050 1060 1070 1080 QARDRPSLGP FLEATTTLNL FTVDQSYRSR LQFSTPKEEV GANRQAINAA LTQATRTTVY 1090 1100 1110 1120 1130 1140 IVDIQDIDSA ARARPHSYLD AYFVFPNGSA LTLDELSVMI RNDQDSLTQL LQLGLVVLGS 1150 1160 1170 1180 1190 1200 QESQESDLSK QLISVIIGLG VALLLVLVIM TMAFVCVRKS YNRKLQAMKA AKEARKTAAG 1210 1220 1230 1240 1250 1260 VMPSAPAIPG TNMYNTERAN PMLNLPNKDL GLEYLSPSND LDSVSVNSLD DNSVDVDKNS 1270 1280 1290 1300 QEIKEHRPPH TPPEPDPEPL SVVLLGRQAG ASGQLEGPSY TNAGLDTTDL

CATM prediction

The sequence of CDHR2_HUMAN returned 1 potential models

The positions at the dimer's interface are highlighted in yellow. The position at the crossing point is highlighted in orange.

# Sequence and interface d θ Z' ω' Score
          1160      1170
   +    |    +    |    +   		 (Å) (°) (Å) (°)
Model 1 LISVIIGLGVALLLVLVIMTMAFVCVR 7.0 -46.0° 2.7 47.0 -23.6

Click on the model number to visualize its details below.

MODEL 1 DETAILS

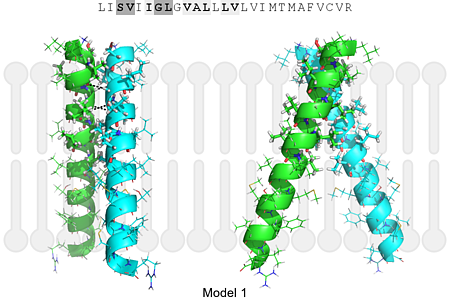

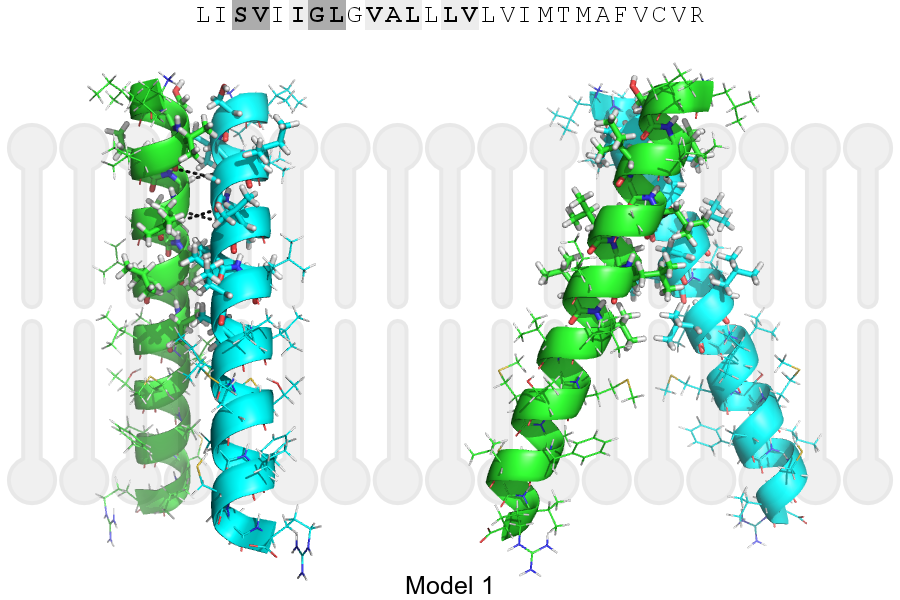

Precited structure:


Click on the image to enlarge

Download model 1 structure: PDB, PyMOL session

List of hydrogen bonds:

Donor Acceptor Distance
B, 1158, GLY, HA1 A, 1155, VAL, O 2.78Å
B, 1159, LEU, HA A, 1158, GLY, O 3.28Å
A, 1158, GLY, HA1 B, 1155, VAL, O 2.78Å
A, 1159, LEU, HA B, 1158, GLY, O 3.28Å
