UniProt data
UniProt name: CP092_HUMAN (Q96LL3)
Gene name: C16orf92
Organism: Homo sapiens (Human).
Function:
Subcellular location: Membrane {ECO:0000305}; Single-pass membrane protein {ECO:0000305}.
Transmembrane domains:
- 100-120, 21 AA, Helical. {ECO:0000255}.
Sequence: 132 AA
10 20 30 40 50 60
MGAGVGVAGC TRGHRNWVPS QLPPREIKAG VSLAVVTEFA WVLAPRPKRA TASALGTESP
70 80 90 100 110 120
RFLDRPDFFD YPDSDQARLL AVAQFIGEKP IVFINSGSSP GLFHHILVGL LVVAFFFLLF
130
QFCTHINFQK GA
CATM prediction
The sequence of CP092_HUMAN returned 1 potential models
The positions at the dimer's interface are highlighted in yellow. The position at the crossing point is highlighted in orange.
| # | Sequence and interface | d | θ | Z' | ω' | Score |
|---|---|---|---|---|---|---|
| 100 110 120 | + | + | |
(Å) | (°) | (Å) | (°) | ||
| Model 1 | GSSAGLFHHILVGLLVVAFFFLLFQFC | 6.7 | -49.0° | 4.5 | 49.0 | -2.8 |
| Prolines* | GSSPGLFHHILVGLLVVAFFFLLFQFC |
* Note: this sequence contains Pro residues. CATM substituted them with Ala during the modeling. The positions are marked.
Click on the model number to visualize its details below.
MODEL 1 DETAILS

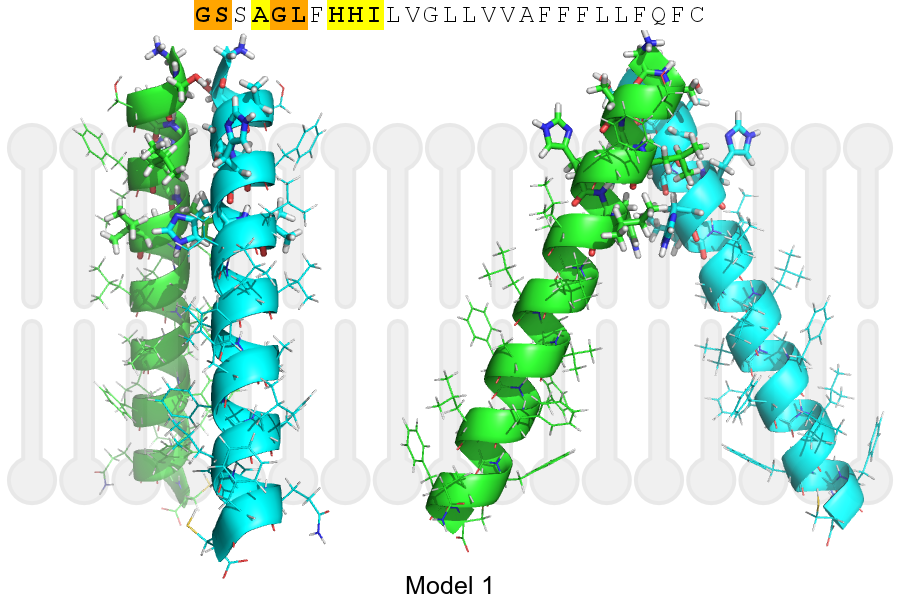

Precited structure:
Click on the image to enlarge
Download model 1 structure: PDB, PyMOL session
