Cell cycle exit and neuronal differentiation protein 1

UniProt data

UniProt name: CEND_HUMAN (Q8N111)

Gene name: CEND1; Synonyms=BM88

Organism: Homo sapiens (Human).

Function: Involved in neuronal differentiation. {ECO:0000250|UniProtKB:Q9JKC6}.

Subcellular location: Membrane {ECO:0000305}; Single-pass type IV membrane protein {ECO:0000305}.

Transmembrane domains:

  1. 126-146, 21 AA, Helical; Anchor for type IV membrane protein. {ECO:0000255}.

Sequence: 149 AA

10 20 30 40 50 60 MESRGKSASS PKPDTKVPQV TTEAKVPPAA DGKAPLTKPS KKEAPAEKQQ PPAAPTTAPA 70 80 90 100 110 120 KKTSAKADPA LLNNHSNLKP APTVPSSPDA TPEPKGPGDG AEEDEAASGG PGGRGPWSCE 130 140 NFNPLLVAGG VAVAAIALIL GVAFLVRKK

CATM prediction

The sequence of CEND_HUMAN returned 1 potential models

The positions at the dimer's interface are highlighted in yellow. The position at the crossing point is highlighted in orange.

# Sequence and interface d θ Z' ω' Score
         130       140
  +    |    +    |    +    		 (Å) (°) (Å) (°)
Model 1 NALLVAGGVAVAAIALILGVAFLVRKK 7.2 -40.0° 2.7 34.0 -4.1
Prolines* NPLLVAGGVAVAAIALILGVAFLVRKK

* Note: this sequence contains Pro residues. CATM substituted them with Ala during the modeling. The positions are marked.

Click on the model number to visualize its details below.

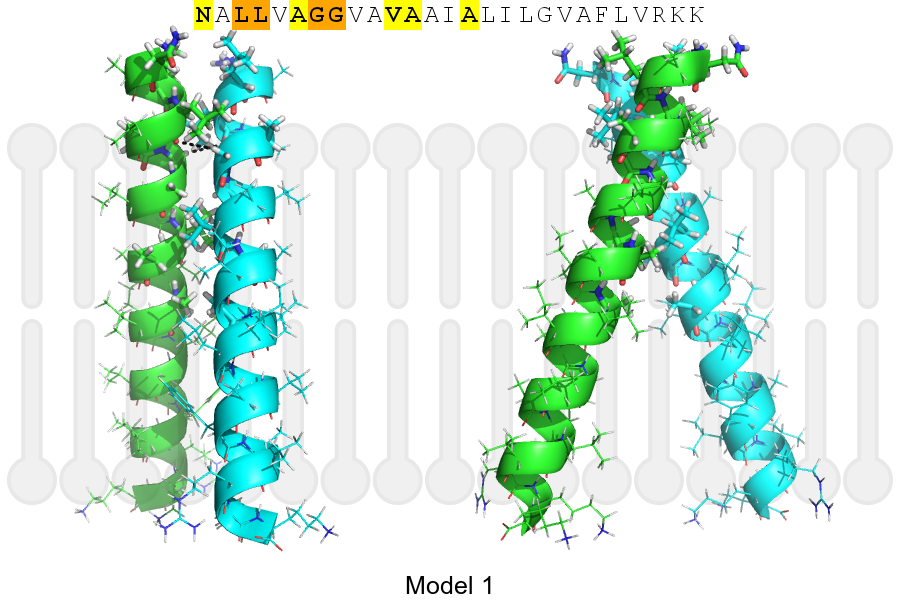

MODEL 1 DETAILS

Precited structure:


Click on the image to enlarge

Download model 1 structure: PDB, PyMOL session

List of hydrogen bonds:

Donor Acceptor Distance
B, 129, GLY, HA1 A, 126, LEU, O 3.27Å
A, 129, GLY, HA1 B, 126, LEU, O 3.27Å
