Netrin receptor UNC5B

UniProt data

UniProt name: UNC5B_HUMAN (Q8IZJ1)

Gene name: UNC5B

Organism: Homo sapiens (Human).

Function: Receptor for netrin required for axon guidance. Mediates axon repulsion of neuronal growth cones in the developing nervous system upon ligand binding. Axon repulsion in growth cones may be caused by its association with DCC that may trigger signaling for repulsion (By similarity). Functions as netrin receptor that negatively regulates vascular branching during angiogenesis. Mediates retraction of tip cell filopodia on endothelial growth cones in response to netrin (By similarity). It also acts as a dependence receptor required for apoptosis induction when not associated with netrin ligand (PubMed:12598906). Mediates apoptosis by activating DAPK1. In the absence of NTN1, activates DAPK1 by reducing its autoinhibitory phosphorylation at Ser-308 thereby increasing its catalytic activity (By similarity). {ECO:0000250|UniProtKB:O08722, ECO:0000250|UniProtKB:Q8K1S3, ECO:0000269|PubMed:12598906}.

Subcellular location: Cell membrane {ECO:0000269|PubMed:25374360}; Single-pass type I membrane protein {ECO:0000250|UniProtKB:O08722}. Membrane raft {ECO:0000250|UniProtKB:O08722}. Note=Associated with lipid rafts. {ECO:0000250|UniProtKB:O08722}.

Transmembrane domains:

  1. 378-398, 21 AA, Helical. {ECO:0000255}.

Sequence: 945 AA

10 20 30 40 50 60 MGARSGARGA LLLALLLCWD PRLSQAGTDS GSEVLPDSFP SAPAEPLPYF LQEPQDAYIV 70 80 90 100 110 120 KNKPVELRCR AFPATQIYFK CNGEWVSQND HVTQEGLDEA TGLRVREVQI EVSRQQVEEL 130 140 150 160 170 180 FGLEDYWCQC VAWSSAGTTK SRRAYVRIAY LRKNFDQEPL GKEVPLDHEV LLQCRPPEGV 190 200 210 220 230 240 PVAEVEWLKN EDVIDPTQDT NFLLTIDHNL IIRQARLSDT ANYTCVAKNI VAKRRSTTAT 250 260 270 280 290 300 VIVYVNGGWS SWAEWSPCSN RCGRGWQKRT RTCTNPAPLN GGAFCEGQAF QKTACTTICP 310 320 330 340 350 360 VDGAWTEWSK WSACSTECAH WRSRECMAPP PQNGGRDCSG TLLDSKNCTD GLCMQNKKTL 370 380 390 400 410 420 SDPNSHLLEA SGDAALYAGL VVAIFVVVAI LMAVGVVVYR RNCRDFDTDI TDSSAALTGG 430 440 450 460 470 480 FHPVNFKTAR PSNPQLLHPS VPPDLTASAG IYRGPVYALQ DSTDKIPMTN SPLLDPLPSL 490 500 510 520 530 540 KVKVYSSSTT GSGPGLADGA DLLGVLPPGT YPSDFARDTH FLHLRSASLG SQQLLGLPRD 550 560 570 580 590 600 PGSSVSGTFG CLGGRLSIPG TGVSLLVPNG AIPQGKFYEM YLLINKAEST LPLSEGTQTV 610 620 630 640 650 660 LSPSVTCGPT GLLLCRPVIL TMPHCAEVSA RDWIFQLKTQ AHQGHWEEVV TLDEETLNTP 670 680 690 700 710 720 CYCQLEPRAC HILLDQLGTY VFTGESYSRS AVKRLQLAVF APALCTSLEY SLRVYCLEDT 730 740 750 760 770 780 PVALKEVLEL ERTLGGYLVE EPKPLMFKDS YHNLRLSLHD LPHAHWRSKL LAKYQEIPFY 790 800 810 820 830 840 HIWSGSQKAL HCTFTLERHS LASTELTCKI CVRQVEGEGQ IFQLHTTLAE TPAGSLDTLC 850 860 870 880 890 900 SAPGSTVTTQ LGPYAFKIPL SIRQKICNSL DAPNSRGNDW RMLAQKLSMD RYLNYFATKA 910 920 930 940 SPTGVILDLW EALQQDDGDL NSLASALEEM GKSEMLVAVA TDGDC

CATM prediction

The sequence of UNC5B_HUMAN returned 1 potential models

The positions at the dimer's interface are highlighted in yellow. The position at the crossing point is highlighted in orange.

# Sequence and interface d θ Z' ω' Score
       380       390       40
+    |    +    |    +    | 		 (Å) (°) (Å) (°)
Model 1 ALYAGLVVAIFVVVAILMAVGVVVYRR 7.2 -40.0° 4.5 44.0 -10.0

Click on the model number to visualize its details below.

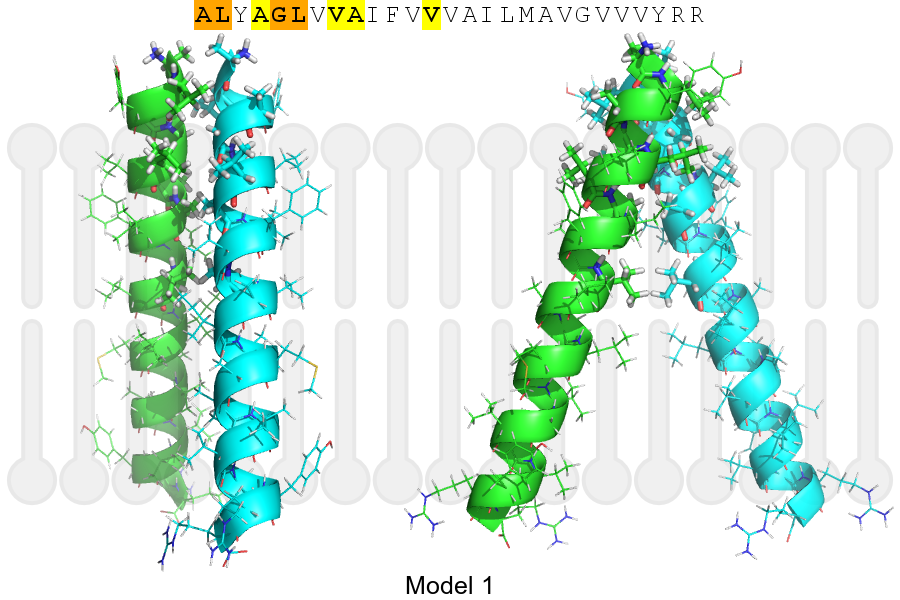

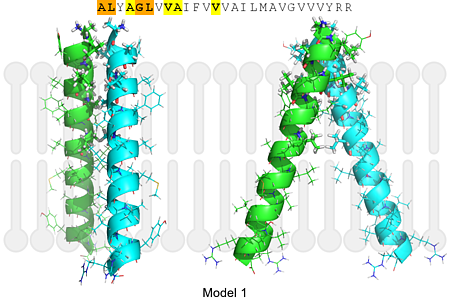

MODEL 1 DETAILS

Precited structure:


Click on the image to enlarge

Download model 1 structure: PDB, PyMOL session
