UniProt data
UniProt name: CA186_HUMAN (Q6ZWK4)
Gene name: C1orf186
Organism: Homo sapiens (Human).
Function:
Subcellular location: Membrane {ECO:0000305}; Single-pass membrane protein {ECO:0000305}.
Transmembrane domains:
- 9-29, 21 AA, Helical. {ECO:0000255}.
Sequence: 172 AA
10 20 30 40 50 60
MLTEVMEVWH GLVIAVVSLF LQACFLTAIN YLLSRHMAHK SEQILKAASL QVPRPSPGHH
70 80 90 100 110 120
HPPAVKEMKE TQTERDIPMS DSLYRHDSDT PSDSLDSSCS SPPACQATED VDYTQVVFSD
130 140 150 160 170
PGELKNDSPL DYENIKEITD YVNVNPERHK PSFWYFVNPA LSEPAEYDQV AM
CATM prediction

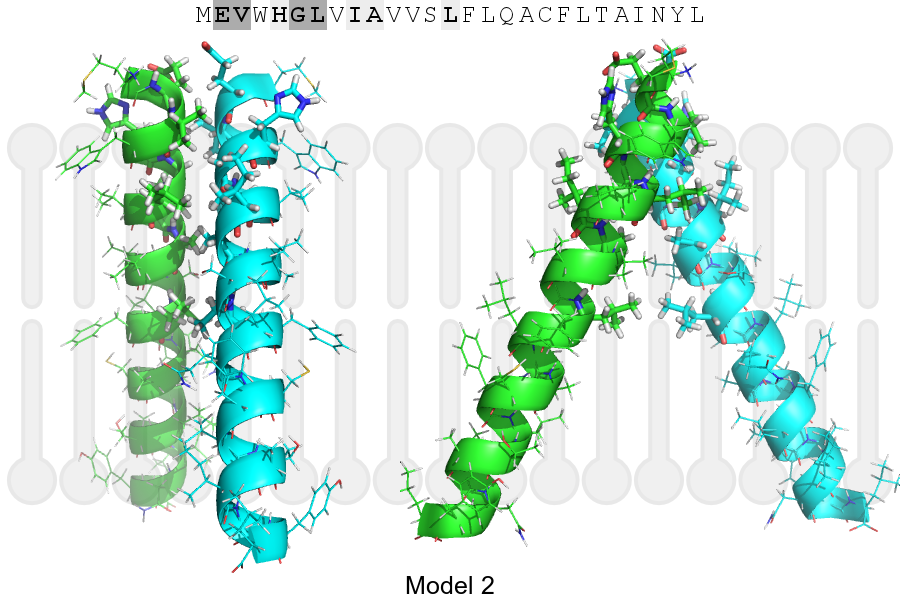

The sequence of CA186_HUMAN returned 2 potential models
The positions at the dimer's interface are highlighted in yellow. The position at the crossing point is highlighted in orange.
| # | Sequence and interface | d | θ | Z' | ω' | Score |
|---|---|---|---|---|---|---|
| 10 20 30 | + | + | |
(Å) | (°) | (Å) | (°) | ||
| Model 1 | MEVWHGLVIAVVSLFLQACFLTAINYL | 7.2 | -40.0° | 4.5 | 44.0 | -20.8 |
| Model 2 | MEVWHGLVIAVVSLFLQACFLTAINYL | 7.4 | -54.0° | 3.6 | 49.0 | -10.2 |
Click on the model number to visualize its details below.
MODEL 1 DETAILS

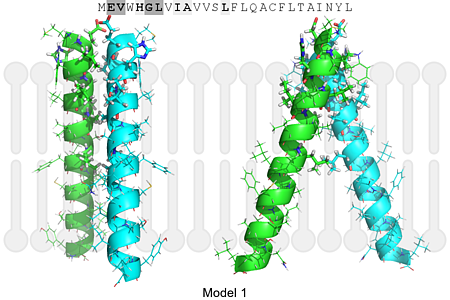

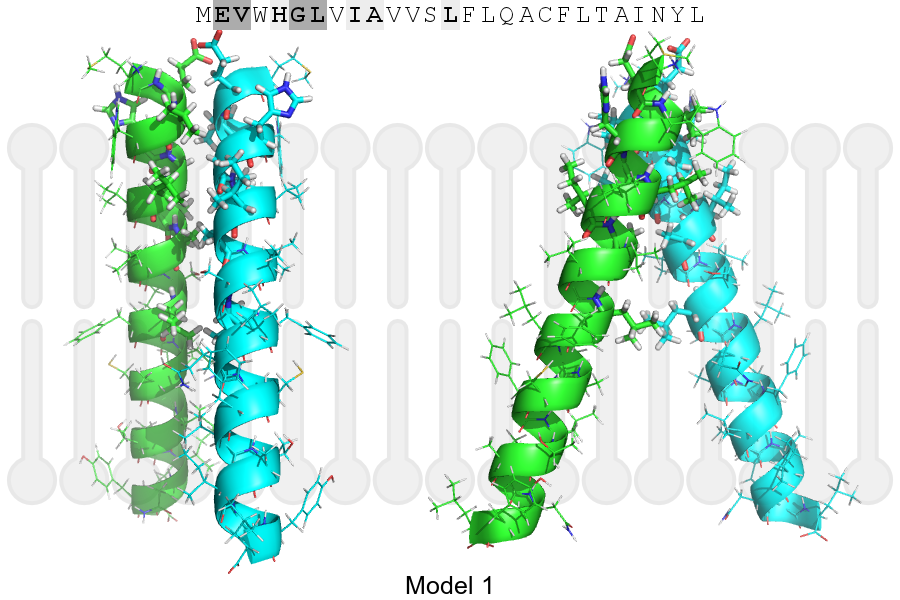

Precited structure:
Click on the image to enlarge
Download model 1 structure: PDB, PyMOL session
