UniProt data
UniProt name: TO20L_HUMAN (Q6UXN7)
Gene name: TOMM20L; ORFNames=UNQ9438/PRO34772
Organism: Homo sapiens (Human).
Function:
Subcellular location: Mitochondrion outer membrane {ECO:0000305}; Single-pass membrane protein {ECO:0000305}.
Transmembrane domains:
- 10-29, 20 AA, Helical. {ECO:0000255}.
Sequence: 152 AA
10 20 30 40 50 60
MPSVRSLLRL LAAAAACGAF AFLGYCIYLN RKRRGDPAFK RRLRDKRRAE PQKAEEQGTQ
70 80 90 100 110 120
LWDPTKNKKL QELFLQEVRM GELWLSRGEH RMGIQHLGNA LLVCEQPREL LKVFKHTLPP
130 140 150
KVFEMLLHKI PLICQQFEAD MNEQDCLEDD PD
CATM prediction
The sequence of TO20L_HUMAN returned 1 potential models
The positions at the dimer's interface are highlighted in yellow. The position at the crossing point is highlighted in orange.
| # | Sequence and interface | d | θ | Z' | ω' | Score |
|---|---|---|---|---|---|---|
| 10 20 30 | + | + | |
(Å) | (°) | (Å) | (°) | ||
| Model 1 | LLRLLAAAAACGAFAFLGYCIYLNRK | 6.8 | -46.2° | 3.6 | 37.1 | -19.5 |
Click on the model number to visualize its details below.

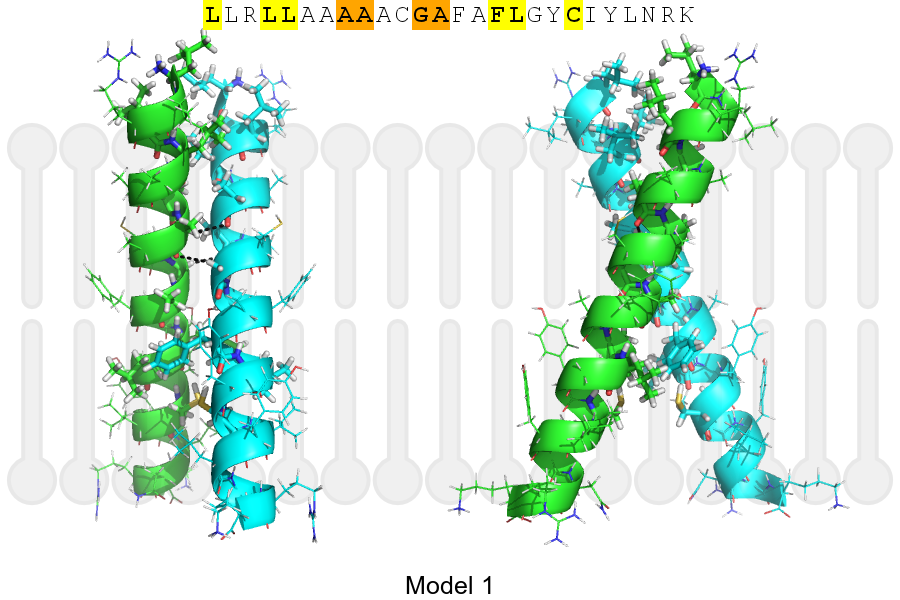

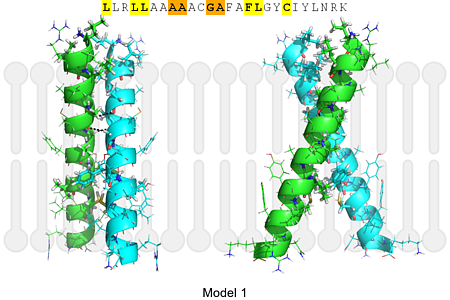

MODEL 1 DETAILS
Precited structure:
Click on the image to enlarge
Download model 1 structure: PDB, PyMOL session
List of hydrogen bonds:
| Donor | Acceptor | Distance |
|---|---|---|
| B, 15, ALA, HA | A, 14, ALA, O | 2.84Å |
| B, 18, GLY, HA1 | A, 15, ALA, O | 2.90Å |
| A, 15, ALA, HA | B, 14, ALA, O | 2.84Å |
| A, 18, GLY, HA1 | B, 15, ALA, O | 2.90Å |
