UniProt data
UniProt name: LRRN1_HUMAN (Q6UXK5)
Gene name: LRRN1; Synonyms=KIAA1497; ORFNames=Nbla10449, UNQ693/PRO1338
Organism: Homo sapiens (Human).
Function:
Subcellular location: Membrane {ECO:0000305}; Single-pass type I membrane protein {ECO:0000305}.
Transmembrane domains:
- 632-652, 21 AA, Helical. {ECO:0000255}.
Sequence: 716 AA
10 20 30 40 50 60
MARMSFVIAA CQLVLGLLMT SLTESSIQNS ECPQLCVCEI RPWFTPQSTY REATTVDCND
70 80 90 100 110 120
LRLTRIPSNL SSDTQVLLLQ SNNIAKTVDE LQQLFNLTEL DFSQNNFTNI KEVGLANLTQ
130 140 150 160 170 180
LTTLHLEENQ ITEMTDYCLQ DLSNLQELYI NHNQISTISA HAFAGLKNLL RLHLNSNKLK
190 200 210 220 230 240
VIDSRWFDST PNLEILMIGE NPVIGILDMN FKPLANLRSL VLAGMYLTDI PGNALVGLDS
250 260 270 280 290 300
LESLSFYDNK LVKVPQLALQ KVPNLKFLDL NKNPIHKIQE GDFKNMLRLK ELGINNMGEL
310 320 330 340 350 360
VSVDRYALDN LPELTKLEAT NNPKLSYIHR LAFRSVPALE SLMLNNNALN AIYQKTVESL
370 380 390 400 410 420
PNLREISIHS NPLRCDCVIH WINSNKTNIR FMEPLSMFCA MPPEYKGHQV KEVLIQDSSE
430 440 450 460 470 480
QCLPMISHDS FPNRLNVDIG TTVFLDCRAM AEPEPEIYWV TPIGNKITVE TLSDKYKLSS
490 500 510 520 530 540
EGTLEISNIQ IEDSGRYTCV AQNVQGADTR VATIKVNGTL LDGTQVLKIY VKQTESHSIL
550 560 570 580 590 600
VSWKVNSNVM TSNLKWSSAT MKIDNPHITY TARVPVDVHE YNLTHLQPST DYEVCLTVSN
610 620 630 640 650 660
IHQQTQKSCV NVTTKNAAFA VDISDQETST ALAAVMGSMF AVISLASIAV YFAKRFKRKN
670 680 690 700 710
YHHSLKKYMQ KTSSIPLNEL YPPLINLWEG DSEKDKDGSA DTKPTQVDTS RSYYMW
CATM prediction
The sequence of LRRN1_HUMAN returned 1 potential models
The positions at the dimer's interface are highlighted in yellow. The position at the crossing point is highlighted in orange.
| # | Sequence and interface | d | θ | Z' | ω' | Score |
|---|---|---|---|---|---|---|
| 630 640 650 | + | + | + |
(Å) | (°) | (Å) | (°) | ||
| Model 1 | STALAAVMGSMFAVISLASIAVYFAKR | 6.8 | -45.0° | 4.0 | 39.2 | -12.5 |
Click on the model number to visualize its details below.
MODEL 1 DETAILS

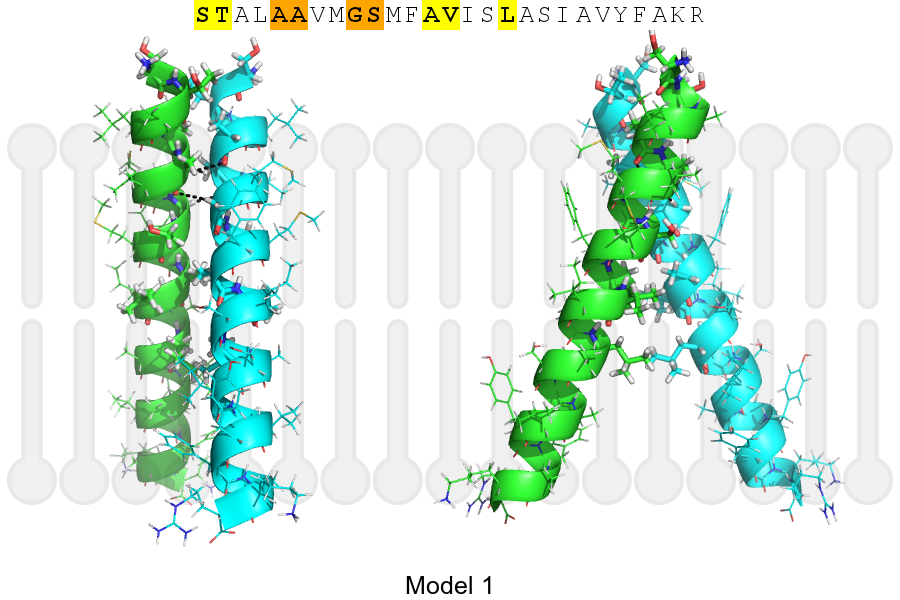

Precited structure:
Click on the image to enlarge
Download model 1 structure: PDB, PyMOL session
List of hydrogen bonds:
| Donor | Acceptor | Distance |
|---|---|---|
| B, 634, ALA, HA | A, 633, ALA, O | 2.71Å |
| B, 637, GLY, HA1 | A, 634, ALA, O | 2.88Å |
| A, 634, ALA, HA | B, 633, ALA, O | 2.71Å |
| A, 637, GLY, HA1 | B, 634, ALA, O | 2.88Å |
