UniProt data
UniProt name: B3GN9_HUMAN (Q6UX72)
Gene name: B3GNT9 {ECO:0000312|HGNC:HGNC:28714}; ORFNames=UNQ1922/PRO4397
Organism: Homo sapiens (Human).
Function:
Subcellular location: Golgi apparatus membrane {ECO:0000255}; Single-pass type II membrane protein {ECO:0000255}.
Transmembrane domains:
- 11-27, 17 AA, Helical; Signal-anchor for type II membrane protein. {ECO:0000255}.
Sequence: 402 AA
10 20 30 40 50 60
MRRRLRLRRD ALLTLLLGAS LGLLLYAQRD GAAPTASAPR GRGRAAPRPT PGPRAFQLPD
70 80 90 100 110 120
AGAAPPAYEG DTPAPPTPTG PFDFARYLRA KDQRRFPLLI NQPHKCRGDG APGGRPDLLI
130 140 150 160 170 180
AVKSVAEDFE RRQAVRQTWG AEGRVQGALV RRVFLLGVPR GAGSGGADEV GEGARTHWRA
190 200 210 220 230 240
LLRAESLAYA DILLWAFDDT FFNLTLKEIH FLAWASAFCP DVRFVFKGDA DVFVNVGNLL
250 260 270 280 290 300
EFLAPRDPAQ DLLAGDVIVH ARPIRTRASK YYIPEAVYGL PAYPAYAGGG GFVLSGATLH
310 320 330 340 350 360
RLAGACAQVE LFPIDDVFLG MCLQRLRLTP EPHPAFRTFG IPQPSAAPHL STFDPCFYRE
370 380 390 400
LVVVHGLSAA DIWLMWRLLH GPHGPACAHP QPVAAGPFQW DS
CATM prediction
The sequence of B3GN9_HUMAN returned 2 potential models
The positions at the dimer's interface are highlighted in yellow. The position at the crossing point is highlighted in orange.
| # | Sequence and interface | d | θ | Z' | ω' | Score |
|---|---|---|---|---|---|---|
| 10 20 3 | + | + | |
(Å) | (°) | (Å) | (°) | ||
| Model 1 | RRDALLTLLLGASLGLLLYAQRD | 7.4 | -23.0° | 2.4 | 46.2 | -30.9 |

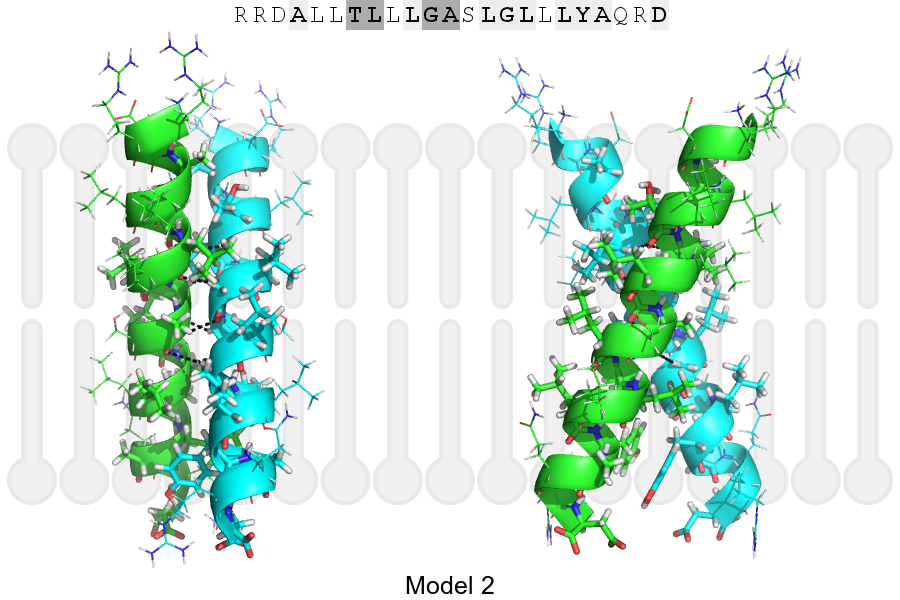

| Model 2 | RRDALLTLLLGASLGLLLYAQRD | 6.4 | -47.8° | 0.5 | 46.6 | -17.3 |
Click on the model number to visualize its details below.

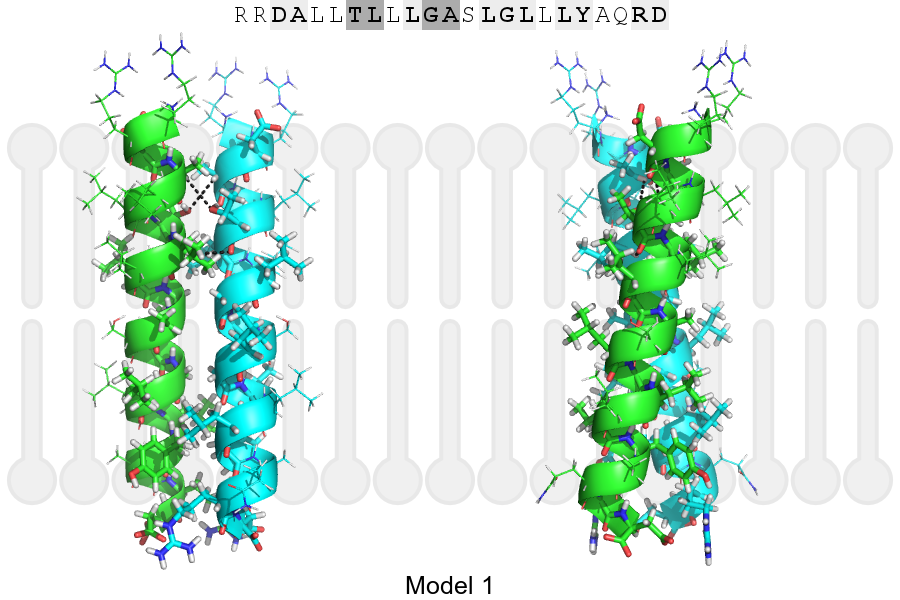

MODEL 1 DETAILS
Precited structure:
Click on the image to enlarge
Download model 1 structure: PDB, PyMOL session
List of hydrogen bonds:
| Donor | Acceptor | Distance |
|---|---|---|
| B, 11, ALA, HA | A, 14, THR, OG1 | 3.39Å |
| B, 15, LEU, HA | A, 14, THR, O | 3.31Å |
| A, 11, ALA, HA | B, 14, THR, OG1 | 3.39Å |
| A, 15, LEU, HA | B, 14, THR, O | 3.31Å |
