UniProt data
UniProt name: C16L2_HUMAN (Q6UWJ8)
Gene name: CD164L2; ORFNames=UNQ6122/PRO20044
Organism: Homo sapiens (Human).
Function:
Subcellular location: Membrane {ECO:0000305}; Single-pass type I membrane protein {ECO:0000305}.
Transmembrane domains:
- 142-162, 21 AA, Helical. {ECO:0000255}.
Sequence: 174 AA
10 20 30 40 50 60
MEAPGPRALR TALCGGCCCL LLCAQLAVAG KGARGFGRGA LIRLNIWPAV QGACKQLEVC
70 80 90 100 110 120
EHCVEGDRAR NLSSCMWEQC RPEEPGHCVA QSEVVKEGCS IYNRSEACPA AHHHPTYEPK
130 140 150 160 170
TVTTGSPPVP EAHSPGFDGA SFIGGVVLVL SLQAVAFFVL HFLKAKDSTY QTLI
CATM prediction
The sequence of C16L2_HUMAN returned 1 potential models
The positions at the dimer's interface are highlighted in yellow. The position at the crossing point is highlighted in orange.
| # | Sequence and interface | d | θ | Z' | ω' | Score |
|---|---|---|---|---|---|---|
| 140 150 160 | + | + | + |
(Å) | (°) | (Å) | (°) | ||
| Model 1 | GASFIGGVVLVLSLQAVAFFVLHFLKA | 7.4 | -54.0° | 3.6 | 49.0 | -3.0 |
Click on the model number to visualize its details below.

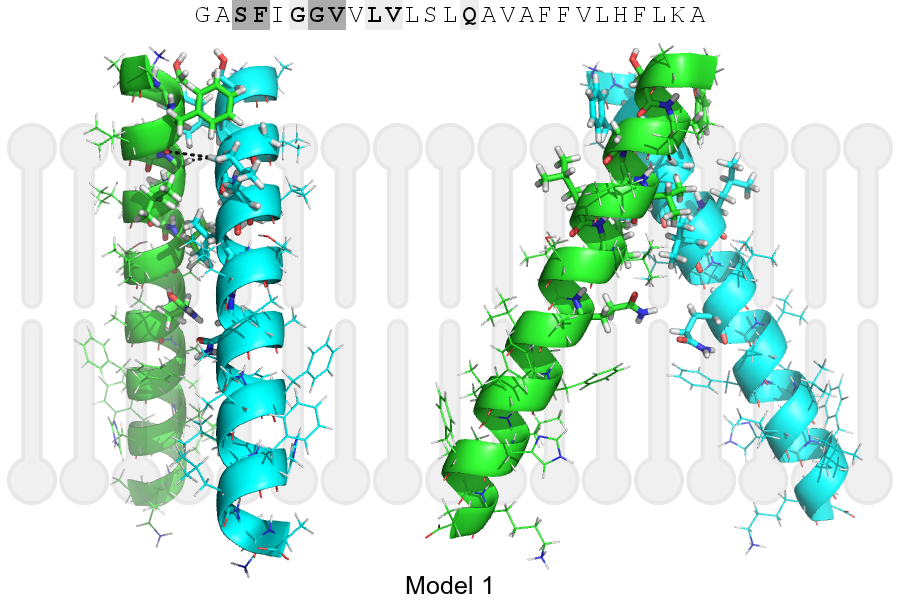

MODEL 1 DETAILS
Precited structure:
Click on the image to enlarge
Download model 1 structure: PDB, PyMOL session
List of hydrogen bonds:
| Donor | Acceptor | Distance |
|---|---|---|
| B, 145, GLY, HA1 | A, 142, PHE, O | 3.47Å |
| A, 145, GLY, HA1 | B, 142, PHE, O | 3.47Å |
