UniProt data
UniProt name: CA185_HUMAN (Q5T7R7)
Gene name: C1orf185
Organism: Homo sapiens (Human).
Function:
Subcellular location: Membrane {ECO:0000305}; Single-pass membrane protein {ECO:0000305}.
Transmembrane domains:
- 17-37, 21 AA, Helical. {ECO:0000255}.
Sequence: 199 AA
10 20 30 40 50 60
MASPKGFFNY LTYFLAAGAV TLGIGFFALA SALWFLICKR REIFQNSKFK AIDERCRQRP
70 80 90 100 110 120
SMAKIKSHSQ CVFISRNFHT GRFQLQEEQR KKEAAHIKAI KDHSKDEPQL ATKNIICDPS
130 140 150 160 170 180
ETSSTTNRSS VTLSLSTLPS DSYYSQSIEA ADDWFSDDSL VKRNSPMPSL GEPLMEKVFS
190
YLSTISLEEG TESVLNDTL
CATM prediction
The sequence of CA185_HUMAN returned 1 potential models
The positions at the dimer's interface are highlighted in yellow. The position at the crossing point is highlighted in orange.
| # | Sequence and interface | d | θ | Z' | ω' | Score |
|---|---|---|---|---|---|---|
| 20 30 4 + | + | + | |
(Å) | (°) | (Å) | (°) | ||
| Model 1 | FLAAGAVTLGIGFFALASALWFLICKR | 7.3 | -53.9° | 3.6 | 49.0 | -6.8 |
Click on the model number to visualize its details below.
MODEL 1 DETAILS

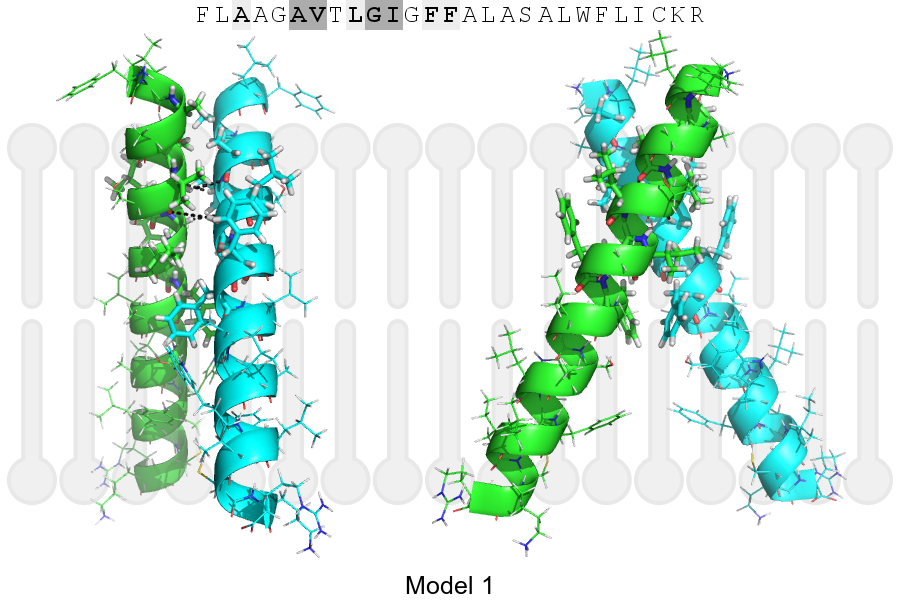

Precited structure:
Click on the image to enlarge
Download model 1 structure: PDB, PyMOL session
List of hydrogen bonds:
| Donor | Acceptor | Distance |
|---|---|---|
| B, 20, VAL, HA | A, 19, ALA, O | 3.23Å |
| B, 23, GLY, HA1 | A, 20, VAL, O | 3.37Å |
| A, 20, VAL, HA | B, 19, ALA, O | 3.23Å |
| A, 23, GLY, HA1 | B, 20, VAL, O | 3.37Å |
