Receptor-type tyrosine-protein phosphatase eta

UniProt data

UniProt name: PTPRJ_HUMAN (Q12913)

Gene name: PTPRJ; Synonyms=DEP1

Organism: Homo sapiens (Human).

Function: Tyrosine phosphatase which dephosphorylates or contributes to the dephosphorylation of CTNND1, FLT3, PDGFRB, MET, RET (variant MEN2A), KDR, LYN, SRC, MAPK1, MAPK3, EGFR, TJP1, OCLN, PIK3R1 and PIK3R2. Plays a role in cell adhesion, migration, proliferation and differentiation. Involved in vascular development. Regulator of macrophage adhesion and spreading. Positively affects cell-matrix adhesion. Positive regulator of platelet activation and thrombosis. Negative regulator of cell proliferation. Negative regulator of PDGF-stimulated cell migration; through dephosphorylation of PDGFR. Positive regulator of endothelial cell survival, as well as of VEGF-induced SRC and AKT activation; through KDR dephosphorylation. Negative regulator of EGFR signaling pathway; through EGFR dephosphorylation. Enhances the barrier function of epithelial junctions during reassembly. Negatively regulates T-cell receptor (TCR) signaling. Upon T-cell TCR activation, it is up-regulated and excluded from the immunological synapses, while upon T-cell-antigen presenting cells (APC) disengagement, it is no longer excluded and can dephosphorylate PLCG1 and LAT to down-regulate prolongation of signaling. {ECO:0000269|PubMed:10821867, ECO:0000269|PubMed:11259588, ECO:0000269|PubMed:12062403, ECO:0000269|PubMed:12370829, ECO:0000269|PubMed:12475979, ECO:0000269|PubMed:12913111, ECO:0000269|PubMed:14709717, ECO:0000269|PubMed:16682945, ECO:0000269|PubMed:16778204, ECO:0000269|PubMed:18348712, ECO:0000269|PubMed:18936167, ECO:0000269|PubMed:19332538, ECO:0000269|PubMed:19494114, ECO:0000269|PubMed:19836242, ECO:0000269|PubMed:19922411, ECO:0000269|PubMed:21091576, ECO:0000269|PubMed:21262971, ECO:0000269|PubMed:9531590, ECO:0000269|PubMed:9780142}.

Subcellular location: Cell membrane; Single-pass type I membrane protein. Cell projection, ruffle membrane {ECO:0000250}. Cell junction. Note=After T-cell stimulation, it is temporarily excluded from immunological synapses.

Transmembrane domains:

  1. 976-996, 21 AA, Helical. {ECO:0000255}.

Sequence: 1337 AA

10 20 30 40 50 60 MKPAAREARL PPRSPGLRWA LPLLLLLLRL GQILCAGGTP SPIPDPSVAT VATGENGITQ 70 80 90 100 110 120 ISSTAESFHK QNGTGTPQVE TNTSEDGESS GANDSLRTPE QGSNGTDGAS QKTPSSTGPS 130 140 150 160 170 180 PVFDIKAVSI SPTNVILTWK SNDTAASEYK YVVKHKMENE KTITVVHQPW CNITGLRPAT 190 200 210 220 230 240 SYVFSITPGI GNETWGDPRV IKVITEPIPV SDLRVALTGV RKAALSWSNG NGTASCRVLL 250 260 270 280 290 300 ESIGSHEELT QDSRLQVNIS GLKPGVQYNI NPYLLQSNKT KGDPLGTEGG LDASNTERSR 310 320 330 340 350 360 AGSPTAPVHD ESLVGPVDPS SGQQSRDTEV LLVGLEPGTR YNATVYSQAA NGTEGQPQAI 370 380 390 400 410 420 EFRTNAIQVF DVTAVNISAT SLTLIWKVSD NESSSNYTYK IHVAGETDSS NLNVSEPRAV 430 440 450 460 470 480 IPGLRSSTFY NITVCPVLGD IEGTPGFLQV HTPPVPVSDF RVTVVSTTEI GLAWSSHDAE 490 500 510 520 530 540 SFQMHITQEG AGNSRVEITT NQSIIIGGLF PGTKYCFEIV PKGPNGTEGA SRTVCNRTVP 550 560 570 580 590 600 SAVFDIHVVY VTTTEMWLDW KSPDGASEYV YHLVIESKHG SNHTSTYDKA ITLQGLIPGT 610 620 630 640 650 660 LYNITISPEV DHVWGDPNST AQYTRPSNVS NIDVSTNTTA ATLSWQNFDD ASPTYSYCLL 670 680 690 700 710 720 IEKAGNSSNA TQVVTDIGIT DATVTELIPG SSYTVEIFAQ VGDGIKSLEP GRKSFCTDPA 730 740 750 760 770 780 SMASFDCEVV PKEPALVLKW TCPPGANAGF ELEVSSGAWN NATHLESCSS ENGTEYRTEV 790 800 810 820 830 840 TYLNFSTSYN ISITTVSCGK MAAPTRNTCT TGITDPPPPD GSPNITSVSH NSVKVKFSGF 850 860 870 880 890 900 EASHGPIKAY AVILTTGEAG HPSADVLKYT YEDFKKGASD TYVTYLIRTE EKGRSQSLSE 910 920 930 940 950 960 VLKYEIDVGN ESTTLGYYNG KLEPLGSYRA CVAGFTNITF HPQNKGLIDG AESYVSFSRY 970 980 990 1000 1010 1020 SDAVSLPQDP GVICGAVFGC IFGALVIVTV GGFIFWRKKR KDAKNNEVSF SQIKPKKSKL 1030 1040 1050 1060 1070 1080 IRVENFEAYF KKQQADSNCG FAEEYEDLKL VGISQPKYAA ELAENRGKNR YNNVLPYDIS 1090 1100 1110 1120 1130 1140 RVKLSVQTHS TDDYINANYM PGYHSKKDFI ATQGPLPNTL KDFWRMVWEK NVYAIIMLTK 1150 1160 1170 1180 1190 1200 CVEQGRTKCE EYWPSKQAQD YGDITVAMTS EIVLPEWTIR DFTVKNIQTS ESHPLRQFHF 1210 1220 1230 1240 1250 1260 TSWPDHGVPD TTDLLINFRY LVRDYMKQSP PESPILVHCS AGVGRTGTFI AIDRLIYQIE 1270 1280 1290 1300 1310 1320 NENTVDVYGI VYDLRMHRPL MVQTEDQYVF LNQCVLDIVR SQKDSKVDLI YQNTTAMTIY 1330 ENLAPVTTFG KTNGYIA

CATM prediction

The sequence of PTPRJ_HUMAN returned 5 potential models

The positions at the dimer's interface are highlighted in yellow. The position at the crossing point is highlighted in orange.

# Sequence and interface d θ Z' ω' Score
         980       990
  +    |    +    |    +    		 (Å) (°) (Å) (°)

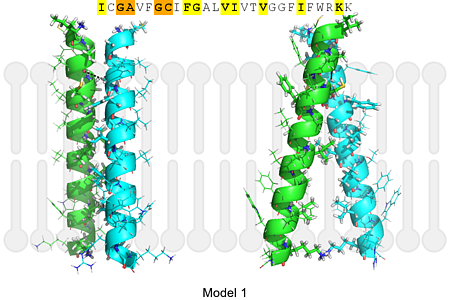

Model 1 ICGAVFGCIFGALVIVTVGGFIFWRKK 6.7 -28.0° 6.0 47.0 -21.3

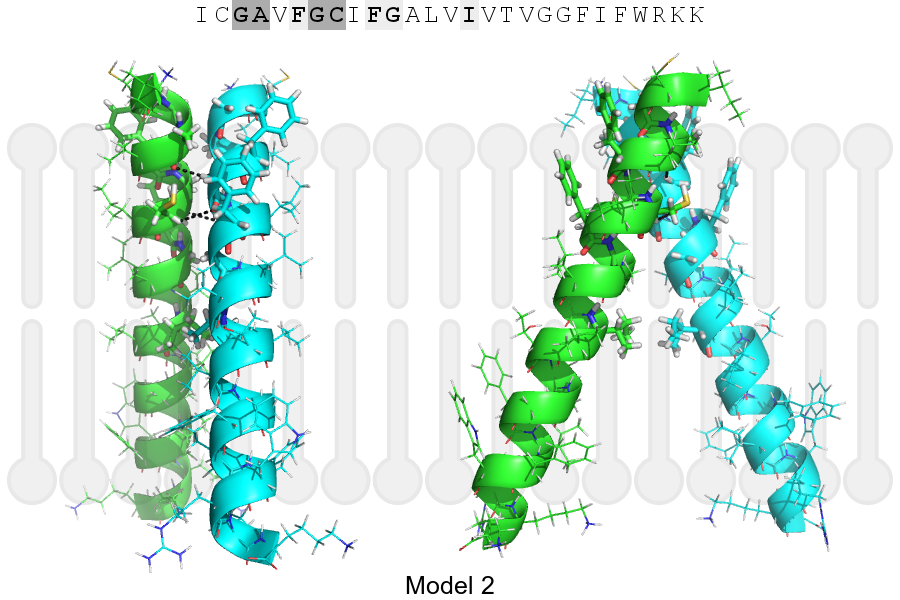

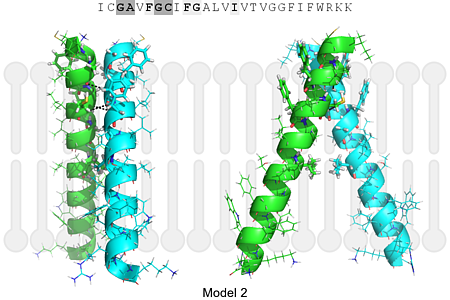

Model 2 ICGAVFGCIFGALVIVTVGGFIFWRKK 6.3 -46.9° 3.3 54.4 -20.8

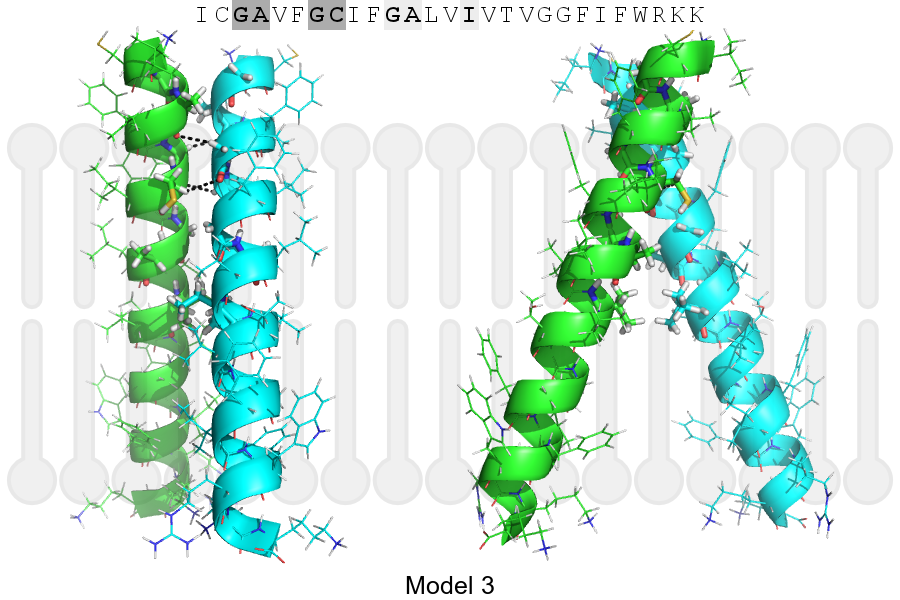

Model 3 ICGAVFGCIFGALVIVTVGGFIFWRKK 6.8 -43.1° 3.0 35.0 -10.8

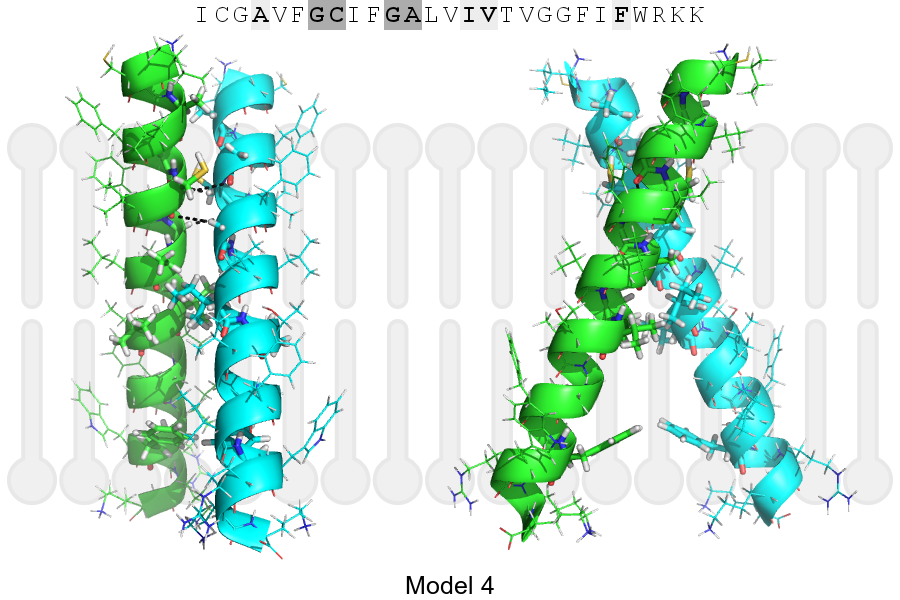

Model 4 ICGAVFGCIFGALVIVTVGGFIFWRKK 7.3 -48.0° 4.4 34.5 -7.2

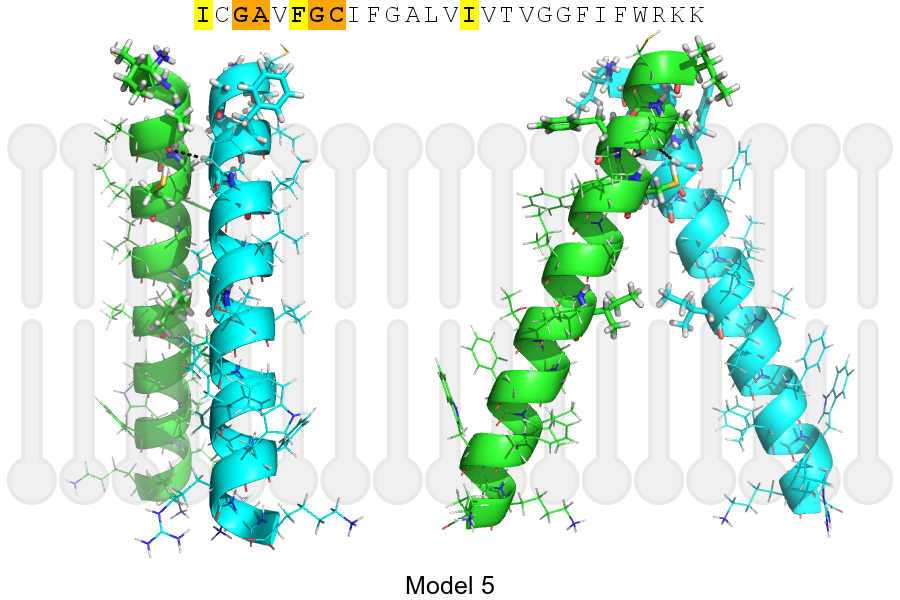

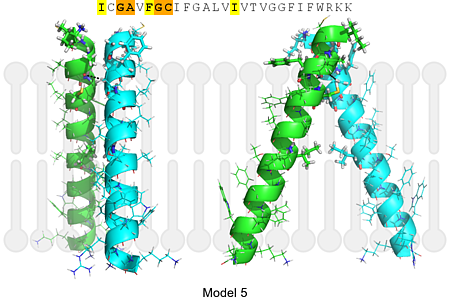

Model 5 ICGAVFGCIFGALVIVTVGGFIFWRKK 6.5 -47.0° 6.0 45.0 -3.3

Click on the model number to visualize its details below.

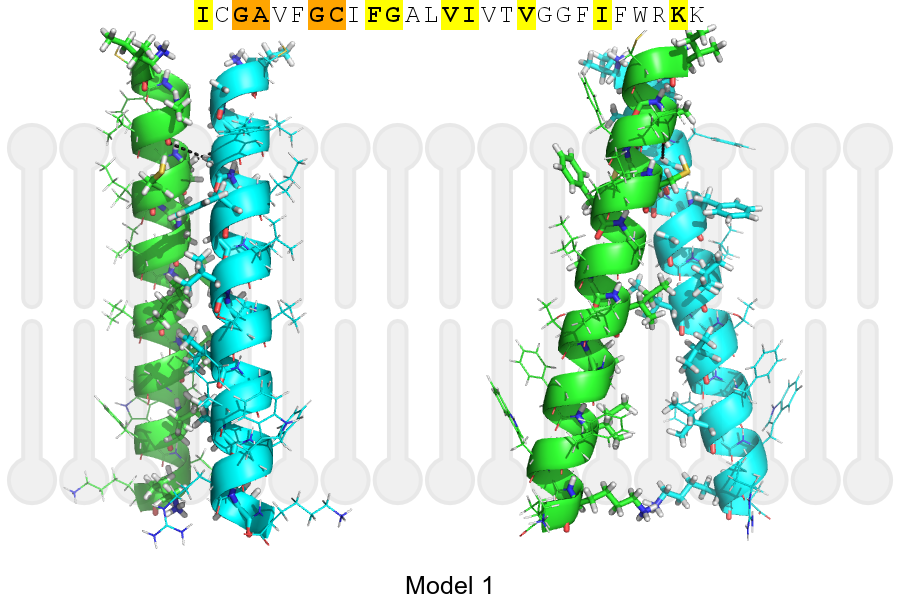

MODEL 1 DETAILS

Precited structure:


Click on the image to enlarge

Download model 1 structure: PDB, PyMOL session

List of hydrogen bonds:

Donor Acceptor Distance
B, 979, GLY, HA1 A, 976, ALA, O 3.32Å
A, 979, GLY, HA1 B, 976, ALA, O 3.32Å
