Transmembrane protein 191B {ECO:0000312|HGNC:HGNC:33600}

UniProt data

UniProt name: T191B_HUMAN (P0C7N4)

Gene name: TMEM191B {ECO:0000312|HGNC:HGNC:33600}

Organism: Homo sapiens (Human).

Function:

Subcellular location: Membrane {ECO:0000255}; Single-pass membrane protein {ECO:0000255}.

Transmembrane domains:

  1. 282-302, 21 AA, Helical. {ECO:0000255}.

Sequence: 346 AA

10 20 30 40 50 60 MCRATLGLPL PPIVIQPARR SLPPIVTPAS RRLGPRGGRH LGSVSTAMAA TQELLLQLQK 70 80 90 100 110 120 DNRDGRQRKQ ELEKLMRGLE AESESLNQRL QDLSERERSL LRRRSQAAQP LQGEAREAAR 130 140 150 160 170 180 ERAERVRRRL EEAERHKEDL EQHSRQLQEQ WEELSSQLFY GGEPQSQKST EQQLAAQLVT 190 200 210 220 230 240 LQNELELAET KCALQEEKLQ QDALQTAEAW AIFQEQTVVL QVRPHSDAKV PPASPPPDLG 250 260 270 280 290 300 RCDGQLRGVQ YSTESLMEEM ARADRETRLF GGPRALAIRR CVLGALQVLL TLPLLFLGLS 310 320 330 340 LLWTVLLDPG AVSAWLWSLT SETTLRRLRY TLSPLLELRA NGLLPT

CATM prediction

The sequence of T191B_HUMAN returned 1 potential models

The positions at the dimer's interface are highlighted in yellow. The position at the crossing point is highlighted in orange.

# Sequence and interface d θ Z' ω' Score
   280       290       300
 |    +    |    +    |    +		 (Å) (°) (Å) (°)
Model 1 RRCVLGALQVLLTLALLFLGLSLLWTV 7.3 -51.0° 4.3 40.0 -10.2
Prolines* RRCVLGALQVLLTLPLLFLGLSLLWTV

* Note: this sequence contains Pro residues. CATM substituted them with Ala during the modeling. The positions are marked.

Click on the model number to visualize its details below.

MODEL 1 DETAILS

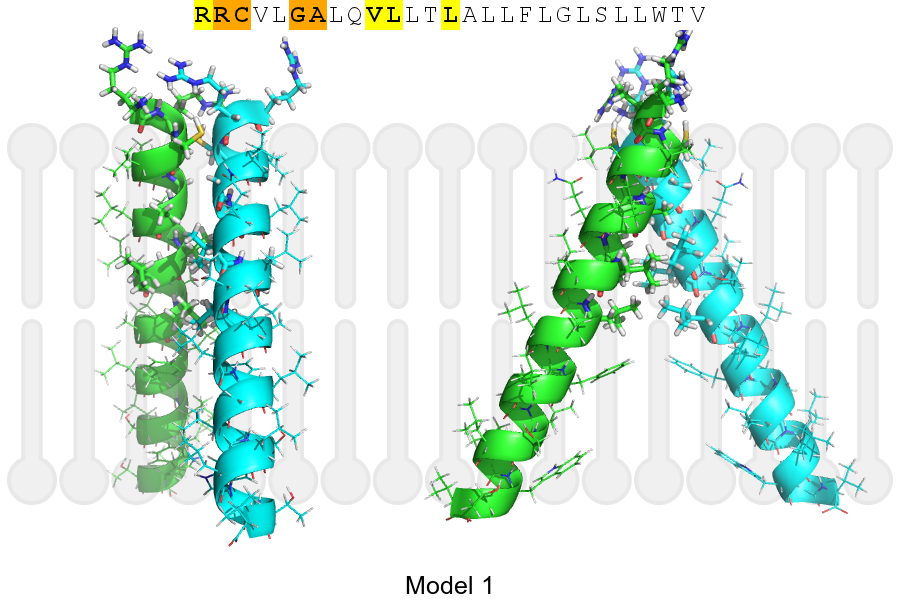

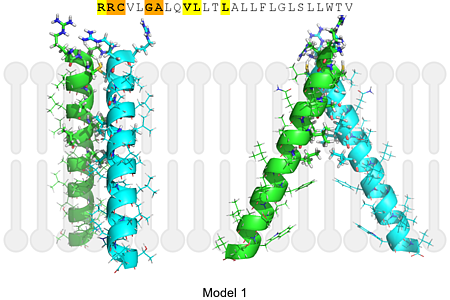

Precited structure:


Click on the image to enlarge

Download model 1 structure: PDB, PyMOL session
