Insulin-like growth factor 1 receptor

UniProt data

UniProt name: IGF1R_HUMAN (P08069)

Gene name: IGF1R

Organism: Homo sapiens (Human).

Function: When present in a hybrid receptor with INSR, binds IGF1. PubMed:12138094 shows that hybrid receptors composed of IGF1R and INSR isoform Long are activated with a high affinity by IGF1, with low affinity by IGF2 and not significantly activated by insulin, and that hybrid receptors composed of IGF1R and INSR isoform Short are activated by IGF1, IGF2 and insulin. In contrast, PubMed:16831875 shows that hybrid receptors composed of IGF1R and INSR isoform Long and hybrid receptors composed of IGF1R and INSR isoform Short have similar binding characteristics, both bind IGF1 and have a low affinity for insulin.

Subcellular location: Cell membrane {ECO:0000269|PubMed:17524361}; Single-pass type I membrane protein {ECO:0000269|PubMed:17524361}.

Transmembrane domains:

  1. 936-959, 24 AA, Helical. {ECO:0000255}.

Sequence: 1367 AA

10 20 30 40 50 60 MKSGSGGGSP TSLWGLLFLS AALSLWPTSG EICGPGIDIR NDYQQLKRLE NCTVIEGYLH 70 80 90 100 110 120 ILLISKAEDY RSYRFPKLTV ITEYLLLFRV AGLESLGDLF PNLTVIRGWK LFYNYALVIF 130 140 150 160 170 180 EMTNLKDIGL YNLRNITRGA IRIEKNADLC YLSTVDWSLI LDAVSNNYIV GNKPPKECGD 190 200 210 220 230 240 LCPGTMEEKP MCEKTTINNE YNYRCWTTNR CQKMCPSTCG KRACTENNEC CHPECLGSCS 250 260 270 280 290 300 APDNDTACVA CRHYYYAGVC VPACPPNTYR FEGWRCVDRD FCANILSAES SDSEGFVIHD 310 320 330 340 350 360 GECMQECPSG FIRNGSQSMY CIPCEGPCPK VCEEEKKTKT IDSVTSAQML QGCTIFKGNL 370 380 390 400 410 420 LINIRRGNNI ASELENFMGL IEVVTGYVKI RHSHALVSLS FLKNLRLILG EEQLEGNYSF 430 440 450 460 470 480 YVLDNQNLQQ LWDWDHRNLT IKAGKMYFAF NPKLCVSEIY RMEEVTGTKG RQSKGDINTR 490 500 510 520 530 540 NNGERASCES DVLHFTSTTT SKNRIIITWH RYRPPDYRDL ISFTVYYKEA PFKNVTEYDG 550 560 570 580 590 600 QDACGSNSWN MVDVDLPPNK DVEPGILLHG LKPWTQYAVY VKAVTLTMVE NDHIRGAKSE 610 620 630 640 650 660 ILYIRTNASV PSIPLDVLSA SNSSSQLIVK WNPPSLPNGN LSYYIVRWQR QPQDGYLYRH 670 680 690 700 710 720 NYCSKDKIPI RKYADGTIDI EEVTENPKTE VCGGEKGPCC ACPKTEAEKQ AEKEEAEYRK 730 740 750 760 770 780 VFENFLHNSI FVPRPERKRR DVMQVANTTM SSRSRNTTAA DTYNITDPEE LETEYPFFES 790 800 810 820 830 840 RVDNKERTVI SNLRPFTLYR IDIHSCNHEA EKLGCSASNF VFARTMPAEG ADDIPGPVTW 850 860 870 880 890 900 EPRPENSIFL KWPEPENPNG LILMYEIKYG SQVEDQRECV SRQEYRKYGG AKLNRLNPGN 910 920 930 940 950 960 YTARIQATSL SGNGSWTDPV FFYVQAKTGY ENFIHLIIAL PVAVLLIVGG LVIMLYVFHR 970 980 990 1000 1010 1020 KRNNSRLGNG VLYASVNPEY FSAADVYVPD EWEVAREKIT MSRELGQGSF GMVYEGVAKG 1030 1040 1050 1060 1070 1080 VVKDEPETRV AIKTVNEAAS MRERIEFLNE ASVMKEFNCH HVVRLLGVVS QGQPTLVIME 1090 1100 1110 1120 1130 1140 LMTRGDLKSY LRSLRPEMEN NPVLAPPSLS KMIQMAGEIA DGMAYLNANK FVHRDLAARN 1150 1160 1170 1180 1190 1200 CMVAEDFTVK IGDFGMTRDI YETDYYRKGG KGLLPVRWMS PESLKDGVFT TYSDVWSFGV 1210 1220 1230 1240 1250 1260 VLWEIATLAE QPYQGLSNEQ VLRFVMEGGL LDKPDNCPDM LFELMRMCWQ YNPKMRPSFL 1270 1280 1290 1300 1310 1320 EIISSIKEEM EPGFREVSFY YSEENKLPEP EELDLEPENM ESVPLDPSAS SSSLPLPDRH 1330 1340 1350 1360 SGHKAENGPG PGVLVLRASF DERQPYAHMN GGRKNERALP LPQSSTC

CATM prediction

The sequence of IGF1R_HUMAN returned 1 potential models

The positions at the dimer's interface are highlighted in yellow. The position at the crossing point is highlighted in orange.

# Sequence and interface d θ Z' ω' Score
         940       950       960
  +    |    +    |    +    |  		 (Å) (°) (Å) (°)
Model 1 FIHLIIALAVAVLLIVGGLVIMLYVFHRKR 7.3 -47.0° 2.3 45.1 -4.1
Prolines* FIHLIIALPVAVLLIVGGLVIMLYVFHRKR

* Note: this sequence contains Pro residues. CATM substituted them with Ala during the modeling. The positions are marked.

Click on the model number to visualize its details below.

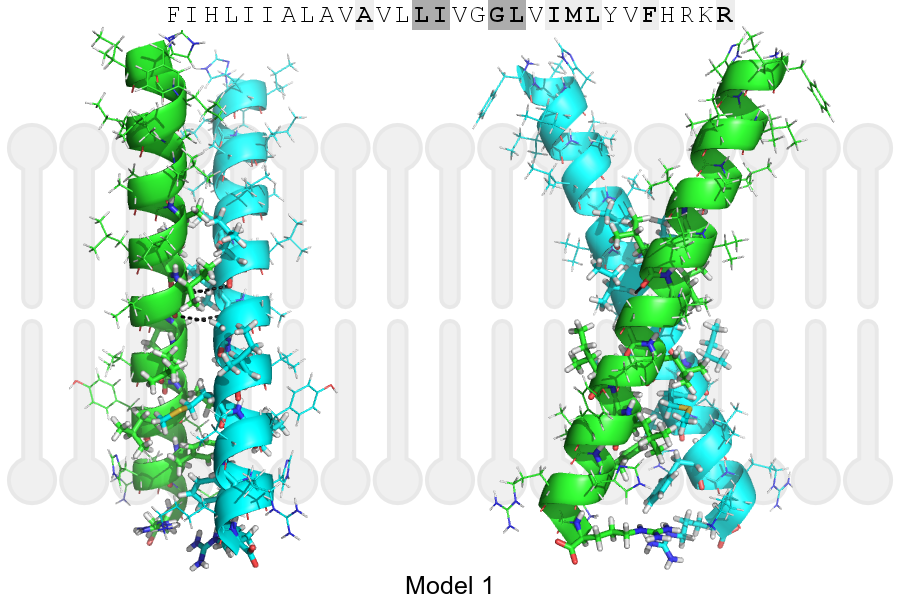

MODEL 1 DETAILS

Precited structure:


Click on the image to enlarge

Download model 1 structure: PDB, PyMOL session

List of hydrogen bonds:

Donor Acceptor Distance
B, 947, ILE, HA A, 946, LEU, O 3.41Å
B, 950, GLY, HA1 A, 947, ILE, O 3.24Å
A, 947, ILE, HA B, 946, LEU, O 3.41Å
A, 950, GLY, HA1 B, 947, ILE, O 3.24Å
