UniProt data
UniProt name: FND10_HUMAN (F2Z333)
Gene name: FNDC10; Synonyms=C1orf233
Organism: Homo sapiens (Human).
Function:
Subcellular location: Membrane {ECO:0000305}; Single-pass type I membrane protein {ECO:0000305}.
Transmembrane domains:
- 183-203, 21 AA, Helical. {ECO:0000255}.
Sequence: 226 AA
10 20 30 40 50 60
MRAPPLLLLL AACAPPPCAA AAPTPPGWEP TPDAPWCPYK VLPEGPEAGG GRLCFRSPAR
70 80 90 100 110 120
GFRCQAPGCV LHAPAGRSLR ASVLRNRSVL LQWRLAPAAA RRVRAFALNC SWRGAYTRFP
130 140 150 160 170 180
CERVLLGASC RDYLLPDVHD SVLYRLCLQP LPLRAGPAAA APETPEPAEC VEFTAEPAGM
190 200 210 220
QDIVVAMTAV GGSICVMLVV ICLLVAYITE NLMRPALARP GLRRHP
CATM prediction
The sequence of FND10_HUMAN returned 1 potential models
The positions at the dimer's interface are highlighted in yellow. The position at the crossing point is highlighted in orange.
| # | Sequence and interface | d | θ | Z' | ω' | Score |
|---|---|---|---|---|---|---|
| 180 190 200 | + | + | + |
(Å) | (°) | (Å) | (°) | ||
| Model 1 | MQDIVVAMTAVGGSICVMLVVICLLVA | 6.9 | -54.9° | 2.4 | 48.4 | -20.3 |
Click on the model number to visualize its details below.
MODEL 1 DETAILS

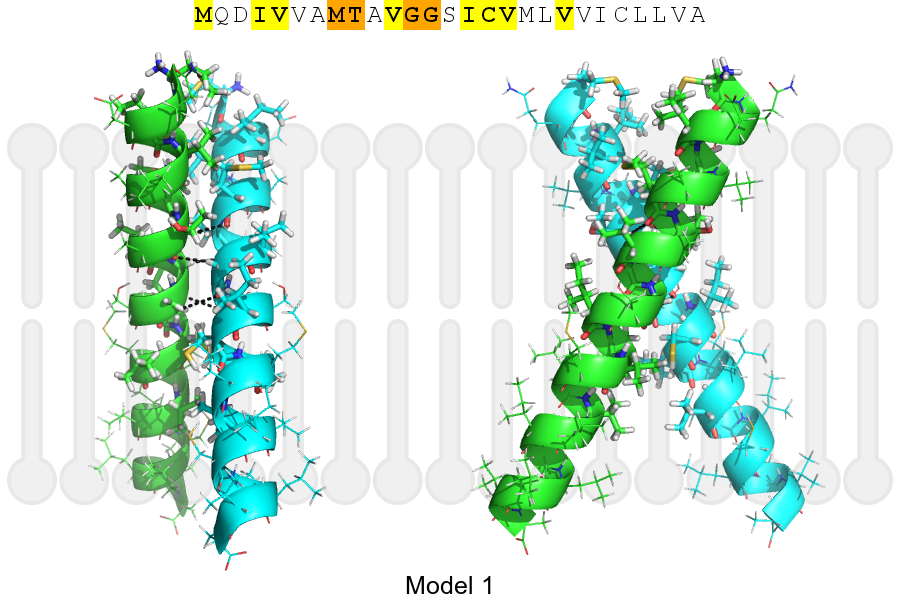

Precited structure:
Click on the image to enlarge
Download model 1 structure: PDB, PyMOL session
List of hydrogen bonds:
| Donor | Acceptor | Distance |
|---|---|---|
| B, 188, THR, HA | A, 187, MET, O | 3.25Å |
| B, 191, GLY, HA1 | A, 188, THR, O | 2.85Å |
| B, 192, GLY, HA2 | A, 191, GLY, O | 3.49Å |
| A, 188, THR, HA | B, 187, MET, O | 3.25Å |
| A, 191, GLY, HA1 | B, 188, THR, O | 2.85Å |
| A, 192, GLY, HA2 | B, 191, GLY, O | 3.49Å |
