Butyrophilin-like protein 10

UniProt data

UniProt name: BTNLA_HUMAN (A8MVZ5)

Gene name: BTNL10

Organism: Homo sapiens (Human).

Function:

Subcellular location: Membrane {ECO:0000305}; Single-pass type I membrane protein {ECO:0000305}.

Transmembrane domains:

  1. 255-275, 21 AA, Helical. {ECO:0000255}.

Sequence: 291 AA

10 20 30 40 50 60 MAVTCDPEAF LSICFVTLVF LQLPLASIWK ADFDVTGPHA PILAMAGGHV ELQCQLFPNI 70 80 90 100 110 120 SAEDMELRWY RCQPSLAVHM HERGMDMDGE QKWQYRGRTT FMSDHVARGK AMVRSHRVTT 130 140 150 160 170 180 FDNRTYCCRF KDGVKFGEAT VQVQVAGLGR EPRIQVTDQQ DGVRAECTSA GCFPKSWVER 190 200 210 220 230 240 RDFRGQARPA VTNLSASATT RLWAVASSLT LWDRAVEGLS CSISSPLLPE RRKVAESHLP 250 260 270 280 290 ATFSRSSQFT AWKAALPLIL VAMGLVIAGG ICIFWKRQRE KNKASLEEER E

CATM prediction

The sequence of BTNLA_HUMAN returned 2 potential models

The positions at the dimer's interface are highlighted in yellow. The position at the crossing point is highlighted in orange.

# Sequence and interface d θ Z' ω' Score
          260       270
   +    |    +    |    +   		 (Å) (°) (Å) (°)
Model 1 WKAALALILVAMGLVIAGGICIFWKRQ 7.3 -48.1° 0.7 54.2 -15.0
Model 2 WKAALALILVAMGLVIAGGICIFWKRQ 7.3 -50.8° 2.4 44.7 -6.7
Prolines* WKAALPLILVAMGLVIAGGICIFWKRQ

* Note: this sequence contains Pro residues. CATM substituted them with Ala during the modeling. The positions are marked.

Click on the model number to visualize its details below.

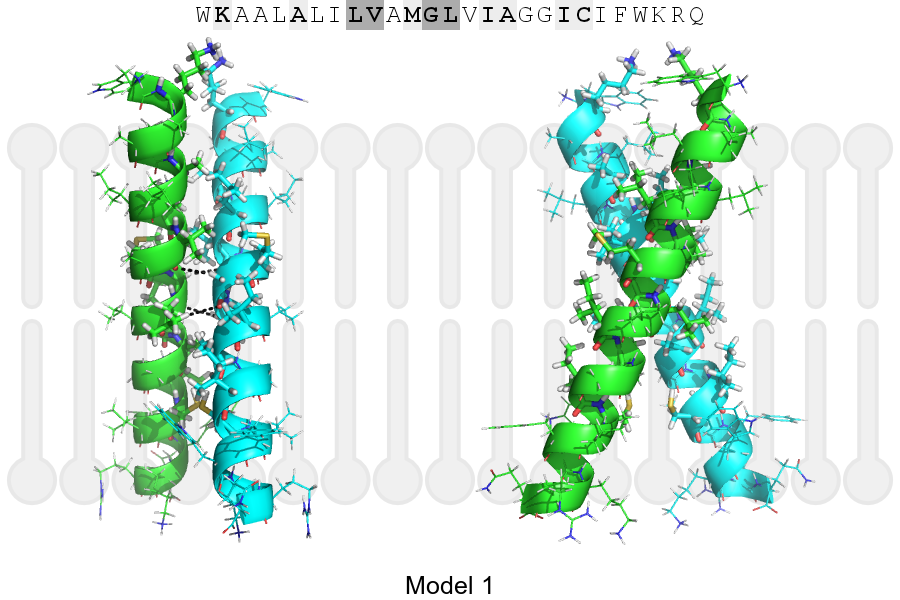

MODEL 1 DETAILS

Precited structure:


Click on the image to enlarge

Download model 1 structure: PDB, PyMOL session

List of hydrogen bonds:

Donor Acceptor Distance
B, 264, GLY, HA1 A, 261, VAL, O 3.28Å
B, 265, LEU, HA A, 264, GLY, O 3.43Å
A, 264, GLY, HA1 B, 261, VAL, O 3.28Å
A, 265, LEU, HA B, 264, GLY, O 3.43Å
